A gradient table,
reimagined.

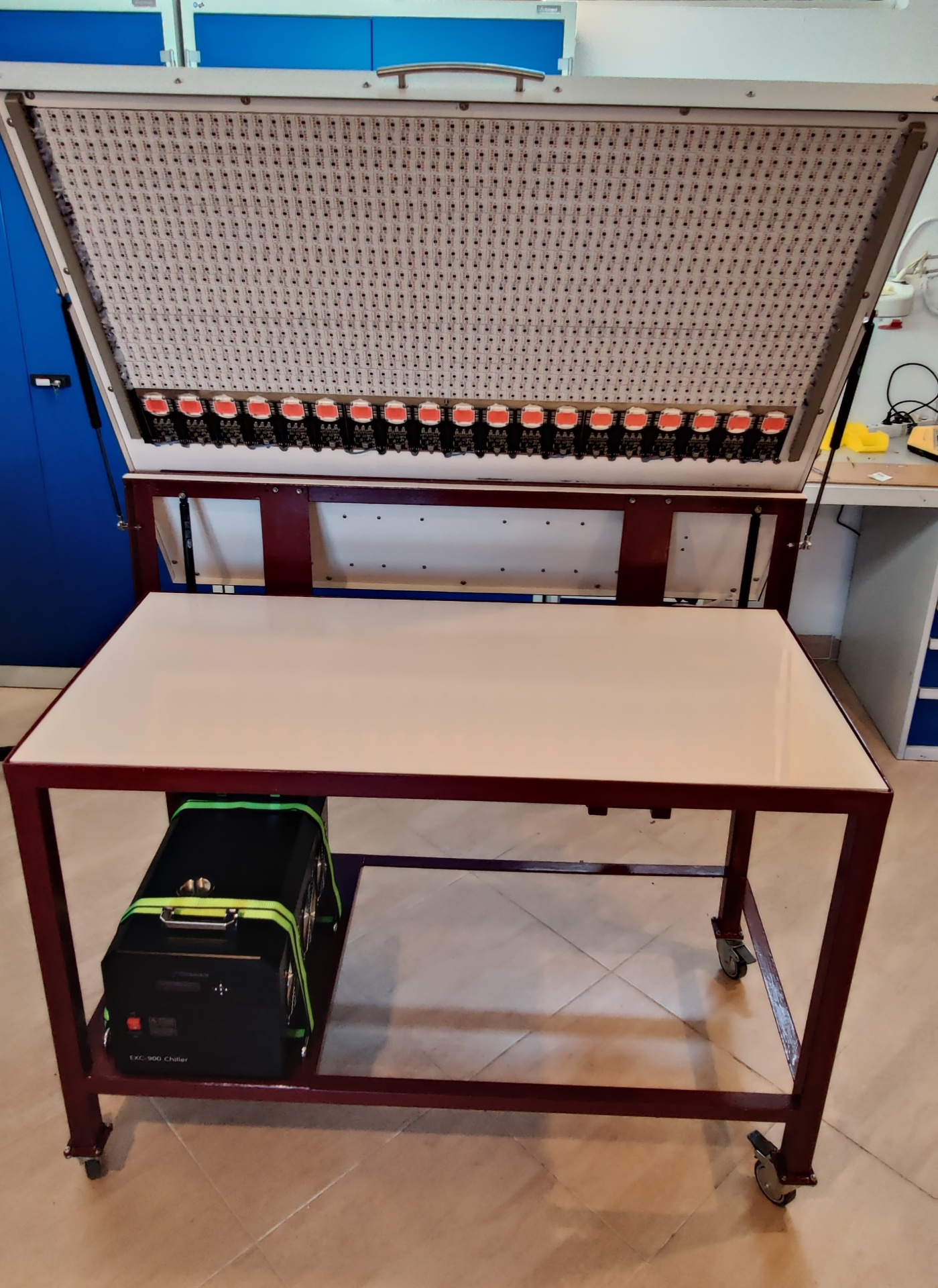

The LightScape GT-1 brings together a precise warm-to-cold thermal field, a motorized high-power LED head and a programmable scene engine in one quiet instrument designed for repeatable biological experimentation.
Thermal head
Warm side, ambient + 5 °C up to 40 °C, set in 0.1 °C steps. Cold side driven by an external chiller down to −3 °C. The continuous gradient stabilizes in about an hour.

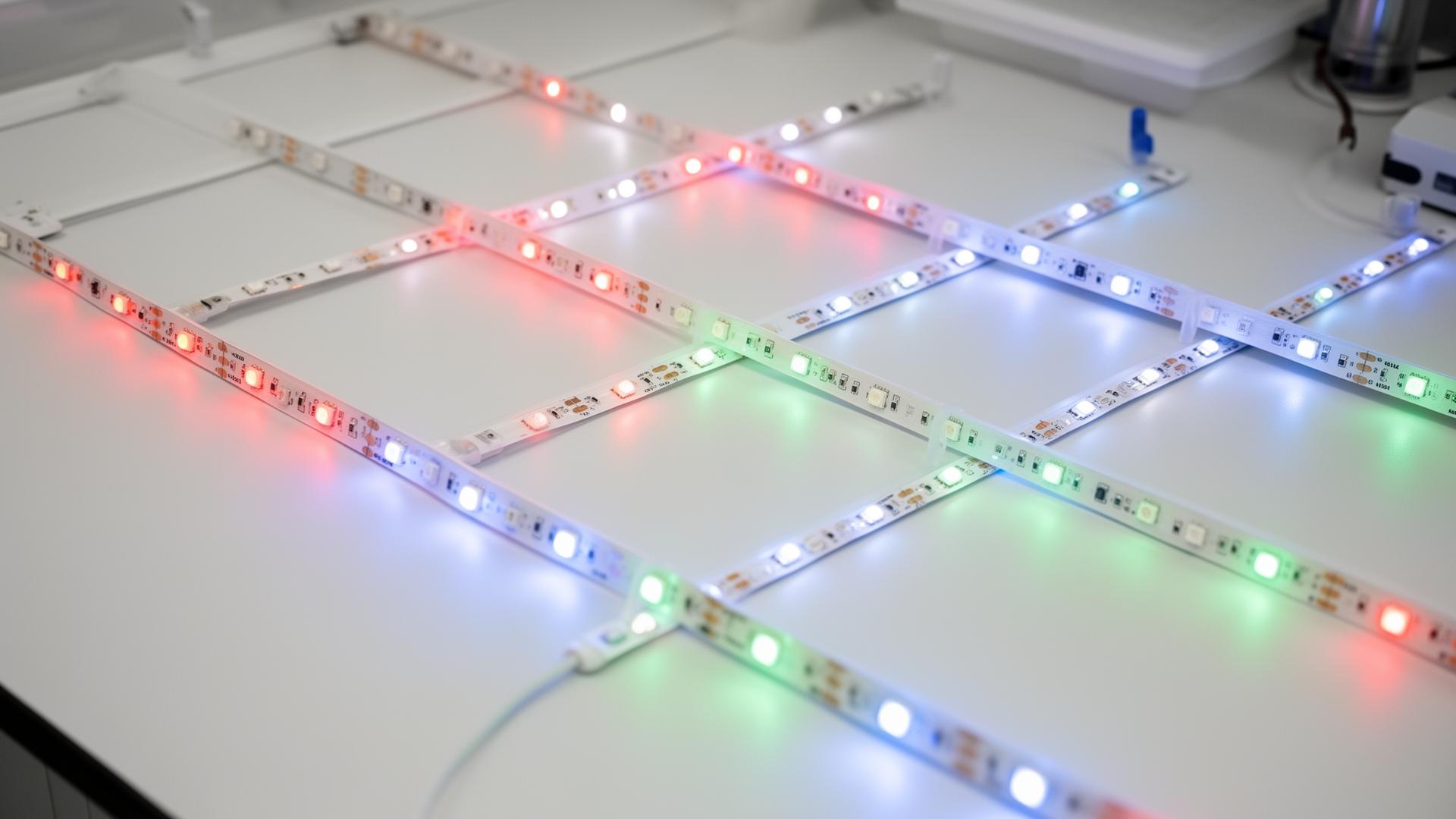

Motorized LED canopy
A motorized head positions the LEDs between 25 mm and 200 mm above the surface, with 1 mm resolution. Home, release and emergency stop are exposed via the software.
Light geometry
Configure strip LEDs as individual zones or patches; high-power LEDs are independently grouped. Each group accepts an RGB value 0 – 255 to compose a scene.
Experiment workflow
Compose scenes with transitions, delays, and nested loops. Programs are saved to disk and pushed to the instrument's MCU for autonomous execution.
